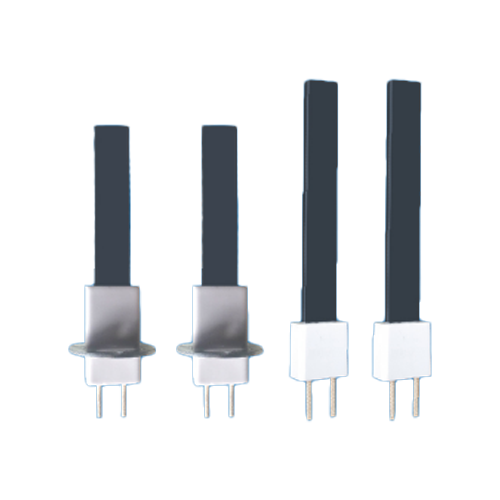

Ceramic Igniter

Torbo, "Silicon nitride Ceramic Igniter can heat up to 800 ° C -1200 ° C in tens of seconds, ignites the fuel by direct heat transfer or blast heat transfer." A temperature buffer area is provided on the Ceramic Igniter to protect the wiring end from damage. The insulation package at the wire junction can effectively prevent short circuit caused by conductive ash. The common working voltage is AC220-240V~, and the input DC voltage model can also be customized. With proper installation and ignition procedures, silicon nitride Ceramic Igniters can be used safely for several years. Ceramic Igniters and heaters with sizes up to 200mmx200mm can be customized according to customer requirements.

The feature of ceramic igniter

■ Small size, high temperature resistance

High power density can be obtained, and the operating temperature can reach 800℃~1200℃.

■ Temperature rise to 800℃~1200℃ with in 20~50S

Good stability

Good electrical insulation performance, excellent voltage resistance, resistance will not age, no power decline.

■ Long life

Reasonable design and use can accumulate more than 10,000 hours of working time

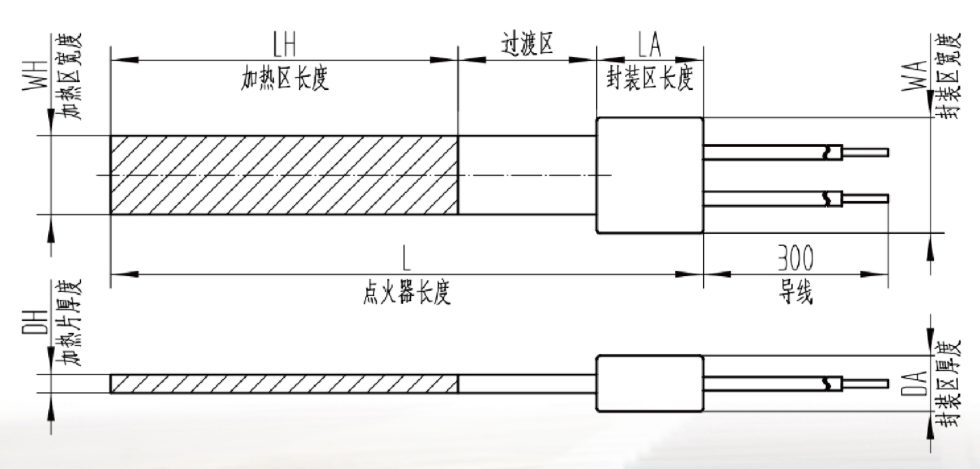

Ceramic Ignition product structure diagram

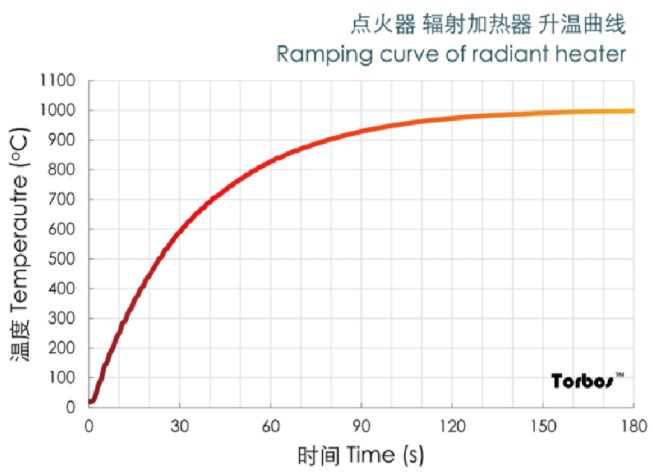

Ceramic Ignition temperature curve

Ceramic Ignition product model

Ceramic Ignition applications

◇ Biomass boiler igniter, straw incinerator igniter

◇ Biomass steam generator igniter

◇ Biomass burner igniter

◇ Hot air gun, ignition gun, welding gun

◇ Fireplace igniter

◇ Fireworks generator igniter

◇ Barbecue charcoal burner

◇ Oil and gas igniter
