Silicon Nitride Substrate Properties and Applications​

Silicon Nitride Substrates are at the forefront of advanced materials technology, offering a unique combination of properties that make them indispensable across a wide range of high-performance industries. This article provides a comprehensive overview of Silicon Nitride Substrate properties, detailed technical specifications, and their diverse applications. We will explore the material’s exceptional mechanical, thermal, and electrical characteristics, present key product parameters in an easy-to-understand format, and discuss why it is the material of choice for demanding environments in electronics, automotive, and industrial sectors.

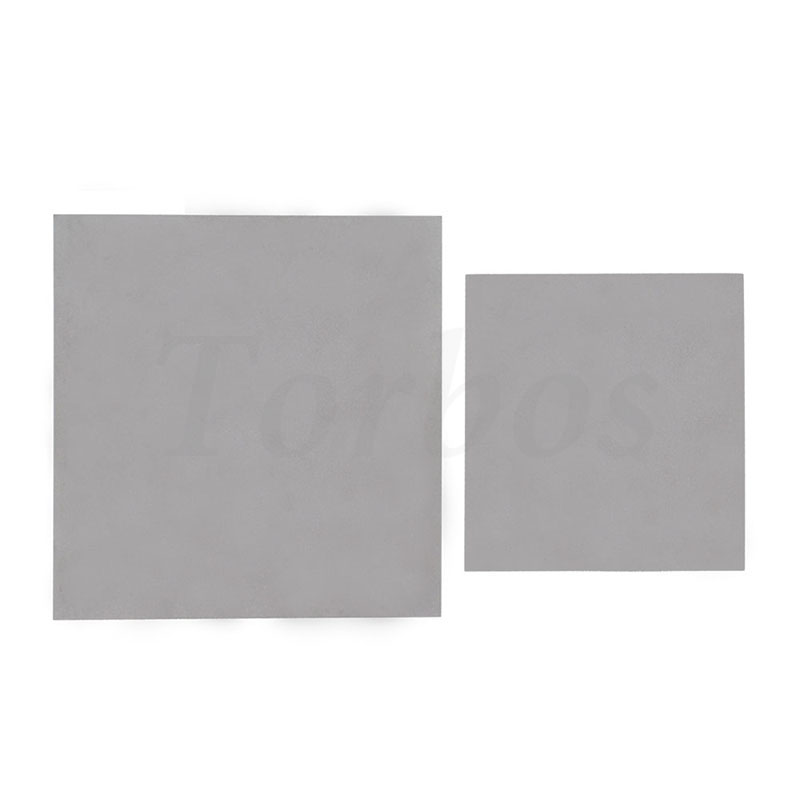

Introduction to Silicon Nitride Substrate

Silicon Nitride (Si₃N₄) is a advanced technical ceramic known for its superior performance in extreme conditions. As a substrate material, it provides an excellent platform for applications requiring high thermal stability, exceptional mechanical strength, and reliable electrical insulation. Its unique properties bridge the gap between traditional ceramics and high-performance requirements, making it a critical material in modern technology-driven industries.

Key Properties of Silicon Nitride Substrate

The popularity of Silicon Nitride Substrates stems from their impressive array of physical and chemical properties. Below is a breakdown of its most notable characteristics:

1. High Thermal Stability
Silicon Nitride exhibits exceptional resistance to thermal shock and can withstand extreme temperatures without degrading. This makes it ideal for applications involving rapid temperature changes.

2. Outstanding Mechanical Strength
It possesses high fracture toughness and hardness, providing excellent wear resistance and structural integrity under mechanical stress.

3. Superior Electrical Insulation
With high electrical resistivity and low dielectric loss, Silicon Nitride Substrate is an excellent insulator, even at elevated temperatures.

4. Chemical Inertness
It is highly resistant to corrosion from acids, alkalis, and other aggressive chemicals, ensuring longevity in harsh environments.

5. Low Thermal Expansion
The coefficient of thermal expansion is very low, which minimizes dimensional changes during heating or cooling cycles.

Technical Parameters of Our Silicon Nitride Substrate

To help you understand the precise capabilities of our product, we have listed the key technical specifications below. These parameters ensure that our Silicon Nitride Substrate meets the highest standards of quality and performance.

Key Properties List:

• Flexural Strength: > 800 MPa

• Fracture Toughness: 6 - 7 MPa·m¹/²

• Vickers Hardness: 1600 - 1800 HV

• Density: 3.2 - 3.3 g/cm³

• Thermal Conductivity: 20 - 30 W/m·K

• Coefficient of Thermal Expansion: 3.2 × 10⁻⁶ /°C (RT to 1000°C)

• Electrical Resistivity: >10¹⁴ Ω·cm

• Dielectric Constant: 8 - 9 (at 1 MHz)

• Dielectric Strength: >15 kV/mm

• Maximum Operating Temperature: 1300°C (in air)

Detailed Parameters Table:

Applications of Silicon Nitride Substrate

Thanks to its remarkable properties, Silicon Nitride Substrate is used in a variety of high-tech and industrial applications. Below are some of the most common uses:

1. Electronics and Semiconductor Industry

• Circuit Substrates: Used for high-power electronic modules and IC packages due to excellent thermal management and electrical insulation.

• Heat Sinks: Efficiently dissipates heat in high-frequency devices.

• Insulating Components: Provides isolation in high-voltage applications.

2. Automotive Industry

• Hybrid and Electric Vehicle Power Modules: Handles high temperatures and electrical loads in inverters and converters.

• Sensors and Ignition Systems: Used in components requiring reliability under thermal cycling.

3. Industrial Engineering

• Welding Nozzles and Fixtures: Resists wear and thermal deformation.

• Cutting Tools: Used as a base material for high-speed machining applications.

• Bearings and Rollers: Performs reliably in high-temperature and corrosive environments.

4. Energy and Power Systems

• Solar Inverter Substrates: Supports efficient energy conversion.

• Nuclear and Thermal Power Components: Withstands radiation and extreme temperatures.

5. Medical Devices

• Medical Implants: Biocompatible and durable for long-term use.

• Surgical Tools: Provides precision and resistance to sterilization processes.

Why Choose Torbo’s Silicon Nitride Substrate?

At Torbo, we pride ourselves on manufacturing Silicon Nitride Substrates that meet the most stringent quality standards. Our products are engineered for reliability, performance, and longevity. With state-of-the-art production facilities and a rigorous quality control process, we ensure every substrate delivers consistent performance in the most demanding applications.

We offer custom solutions tailored to your specific requirements, including various sizes, shapes, and metallization options to suit your design needs.

Conclusion

Silicon Nitride Substrate is a versatile and high-performance material that plays a critical role in advancing technology across multiple industries. Its unique combination of thermal, mechanical, and electrical properties makes it an ideal choice for applications where failure is not an option.

We at Torbo are committed to providing top-quality Silicon Nitride Substrates that empower innovation and enhance product performance. If you are looking for a reliable partner for your advanced material needs, we invite you to reach out to us. Let’s discuss how our expertise can help you achieve your project goals.

I encourage you to contact me directly at henry.he@torbos.com for more information or to request a sample. Let’s build the future together with Torbo.
